Grohe - 38528001
Product Information

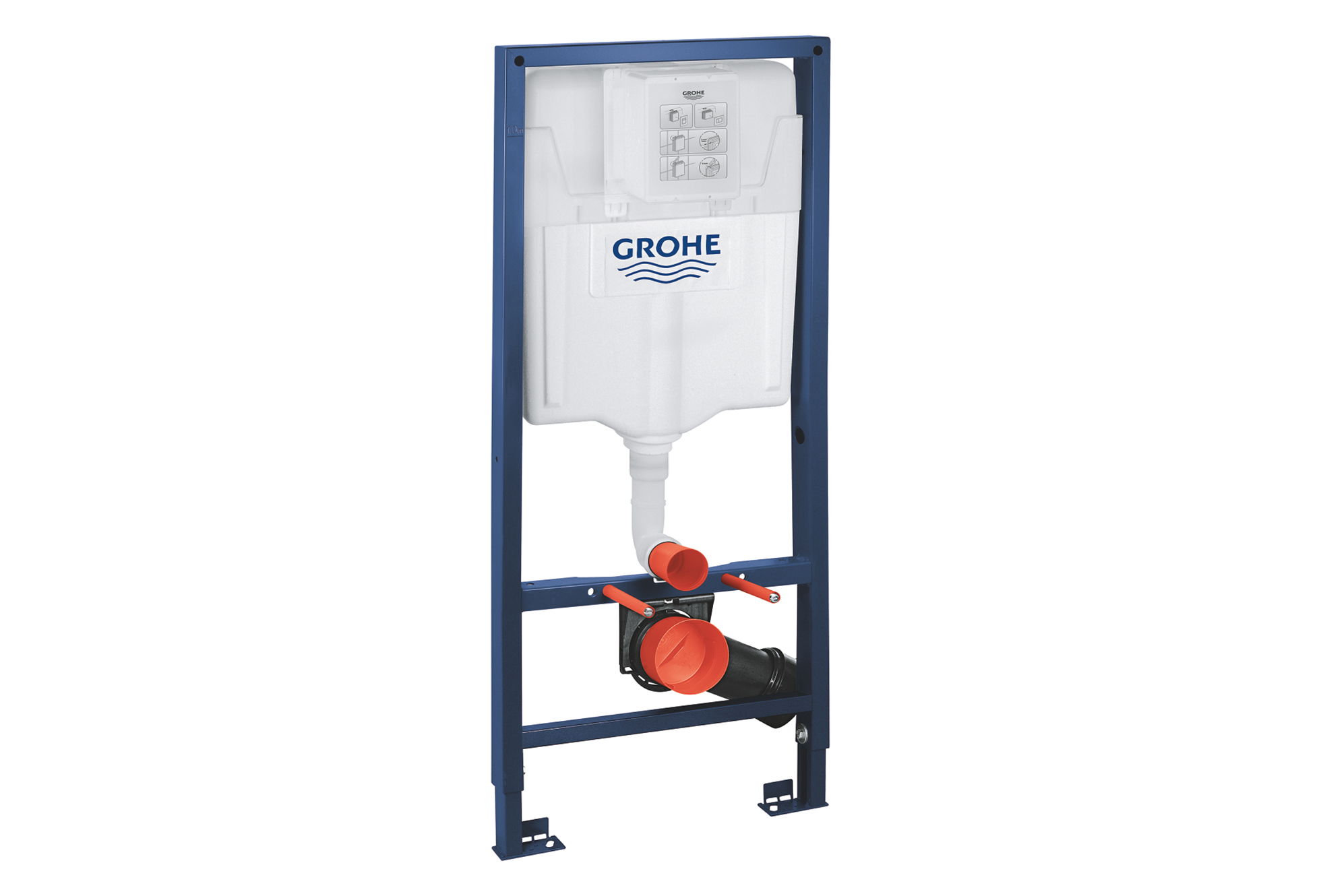

Rapid SL for WC
flushing cistern GD 2
1.13 m installation height
for on-the-wall installations or studded walls
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled
with fixed connections
quick adjustment, lockable
fixing material
TÜV approved
2 WC fixing bolts
fixing device for ceramic
WC ceramics with small bearing area
(less than 205 mm)
require additional accessory 000 779 38
distance of fixing bolts 230/180 mm
outlet bend Ø 90 mm
depth adjustable
reducer Ø 110/90 mm
inlet and outlet connecting set
flushing cistern GD
adjustment ex factory 6 l and 3 l
pneumatic discharge valve offering 3 modes of
operation: dual flush or start/stop or single flush
water supply from left/right or back
low noise (group I acc. to German Noise Specification)
insulated against condensation
½" water supply connection including integrated
angle valve and push fit flexible hose union
no tools required for the installation of the
inspection shaft
including protection during construction phase
for vertical or horizontal use
without accessories for on-the-wall installation
for mounting of small flush plates please order
revision shaft 000 911 40 (sold separately)
